Modular AB Gate Swing Turnstile With Double Detection For Macau Commercial Plaza

Markenname:	KOMAI
Modellnummer:	KM-AB006
Mindestbestellmenge:	2Stk
Preis:	Negotiate
Zahlungsbedingungen:	T/T, Western Union
Versorgungsfähigkeit:	5000 Stück pro Monat

Detailinformationen

Produktbeschreibung

Detailinformationen

Herkunftsort:

China

Zertifizierung:

CE/RHOS/FCC/ISO

Produktname:

Eisenbahn-AB-Tor

Material:

Edelstahl 304

Infrarotsensor:

10 Paare

LED-Anzeige:

Unterstützung

Garantie:

1 Jahr

Stromversorgung:

Wechselstrom 100 ~ 120 V / 200 ~ 240 V, 50 / 60 Hz

Spurbreite (mm):

600mm-1000mm

Steuermodus:

Automatisch

Hs-Code:

85369000

Bewegung:

Doppelbewegung

Verpackung Informationen:

Holzkiste

Versorgungsmaterial-Fähigkeit:

5000 Stück pro Monat

Hervorheben:

Macau AB Gate

Double Detection AB Gate

Modular AB Gate Swing Turnstile

Produktbeschreibung

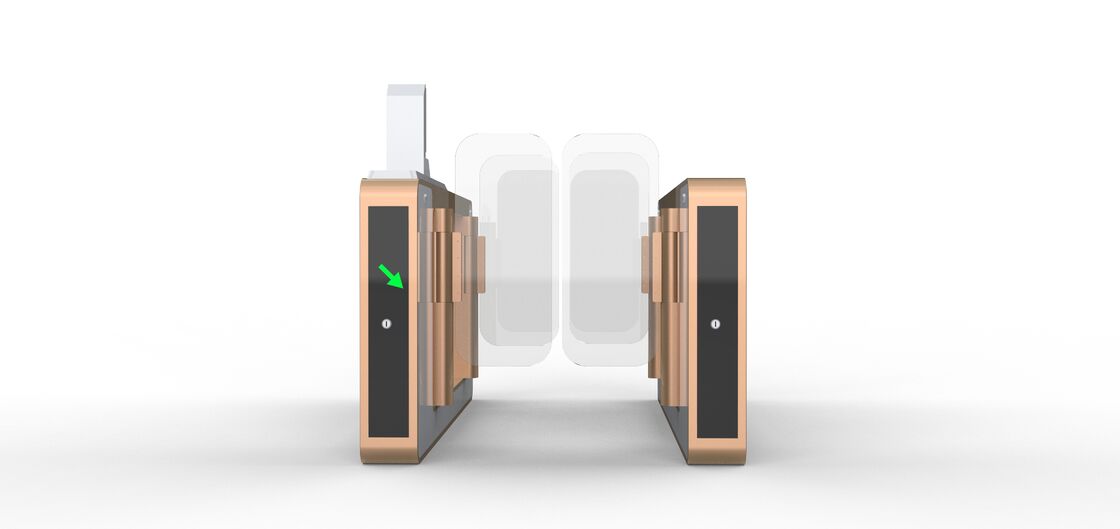

Modular AB Gate Swing Turnstile with Double Detection for Macau Commercial Plaza

Production Description :

The intelligent AB Full Height turnstile Gate has a lossless modular

mechanism structure, and has an advanced brushless servo control system and servo motor control technology independently developed by us. The turnstile adopts servo motor, so as to make the speed gate turnstile with advantages of high stability, high safety, long life service, accurate

detection, fast, stable and silent running, etc

The intelligent AB Full Height turnstile Gate has strong waterproof and dustproof capabilities, and is suitable for high-end indoor and outdoor

occasions such as office buildings, factories, airports, government agencies, schools, hospitals, casino,and leisure venues etc.

it is a swing barrier with a modular design that realizes fasts witching between different readers, and reader installation can be completed by merely pull-out and plug-in. After installing the corresponding readers, it can support multiple verification method, including RFID, fingerprint, QR code, passport , palm verification,visible light facial recognition can realize toothless entrance control that avoids hands exposing to bacteria and boost public hygienic security.

Features :

Brush less servo motor with 240 0 line position feedback

Current+position double detection, adjustable sensitivity

The switch speed is fast, and it is stable and does not shake.

Work with sensors, 10-20 pairs per lane

One way/ two way access control

Passable on power failure

Lane width: 600 mm/ 900 mm

Normal close/normal open

Door material: Acrylic , tempered glass( optional)

Door close time: 1-60s, 10s ( default)

One card one person ( default), Group pass for Continuous swiping card ( optional)

Door bounce back once hit block during movement

Compatible with various types of access control system

A door normal close(open by sensor), B door normal open(by swipe passport), B door is triggered to close when there is tailgating from A door.

Date sheet:

Power Requirements	AC 100 ~ 120V / 200 ~ 240V, 50 / 60Hz
Working Temperature	-28°C ~ 60°C
Working Humidity	20% ~ 95% (non-condensing)
Working Environment	Indoor / Outdoor (if sheltered)
Lane Width (mm)	600mm-1000mm
Infrared Sensor	10 pairs
Dimension(LWH)	2000 * 220 * 1000 (mm) ( size can be customized)
Dimension with Packing(LWH)	2060 * 280 * 1150(mm)
Weight with Packing(kg)	120kg
LED Indicator	Support

Cabinet Material	304#sus, 316SUS (optional) powder coated (optional)
Lid Material	304#sus,
Barrier Material	Acrylic glass/tempered glass ( optional)
Barrier Movement	Indoor/ outdoor
Emergency Mode	Yes
MCBF	10,000,000 times
Warranty	1 year
